When Sourcing Aluminum Furniture Handles from China, How Should I Establish Inspection Standards to Ensure Mass Production Matches the Samples?

Every week, our production floor ships thousands of aluminum furniture handles to wholesalers across Vietnam and the Middle East Pre-production inspection ¹. Yet the question we hear most often from new buyers is painfully simple: “How do I make sure the bulk order looks exactly like the sample?” It is a fair concern. The sample you hold in your hand was likely hand-finished, carefully selected, and shipped in perfect packaging During-production inspection ². Mass production, by nature, introduces variation. Without a clear inspection framework, that gap between sample and shipment grows wider with every batch.

To ensure mass-produced aluminum handles match approved samples, build your inspection standards around a signed-off golden sample, written dimensional tolerances, a photo-based defect catalog, surface finish criteria, and AQL-based random sampling at multiple production stages—so every judgment is objective, measurable, and enforceable.

This guide walks you through each building block of a reliable inspection standard. Whether you are a furniture factory owner or a building material distributor, the steps below will help you translate a perfect sample into a repeatable quality benchmark your supplier can follow at scale.

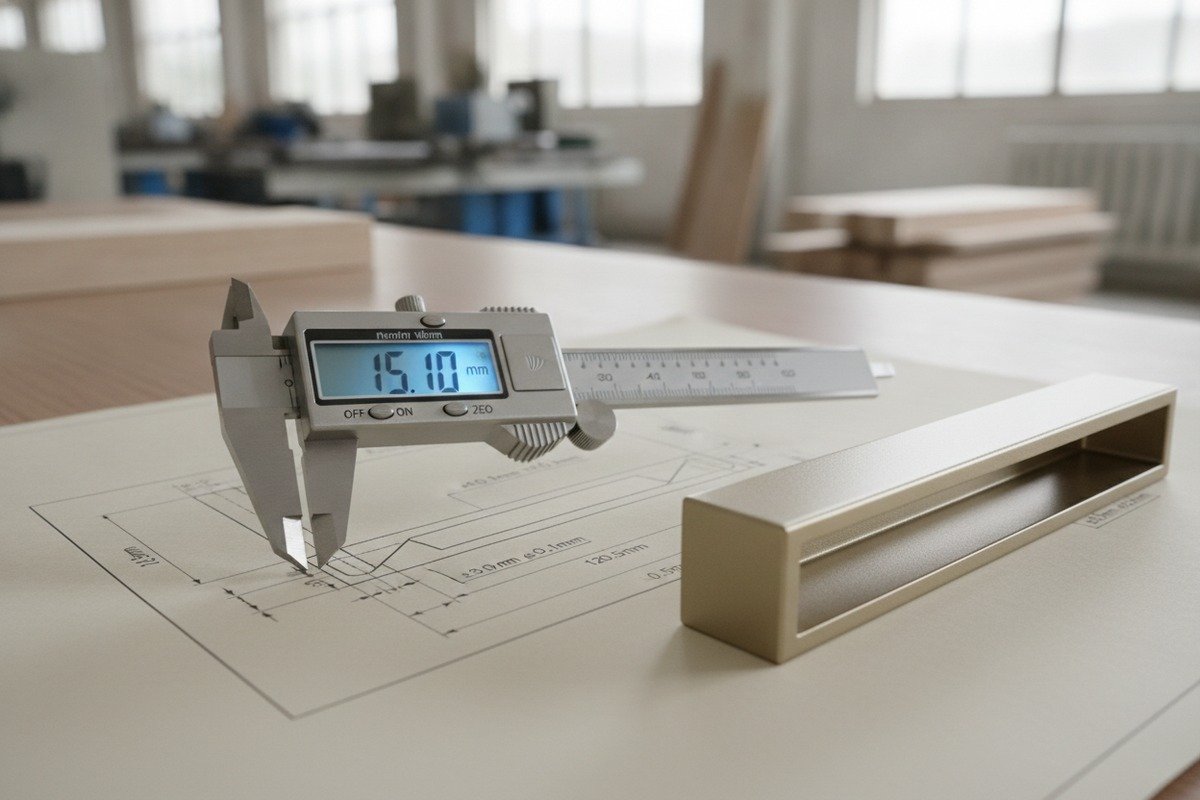

How can I define precise technical tolerances to ensure my bulk aluminum handles fit perfectly?

When our engineering team prepares production drawings, we always ask: did the buyer specify tolerances, or are we guessing? Most quality disputes start here, with missing numbers on a drawing.

Define precise tolerances by listing every critical dimension—hole spacing, screw diameter, projection depth, grip width, and overall length—on a signed drawing with nominal values and acceptable ± deviations, then verify them with calipers and gauges during inspection.

Why "Matches the Sample" Is Not a Tolerance

Telling a factory the handles should "match the sample" sounds reasonable. In practice, it fails. A sample is a single physical object. It does not tell the inspector whether a 0.3 mm deviation in hole spacing is acceptable or not. Inspectors need numbers. Without written tolerances ³, the factory decides what is close enough, and their definition may not match yours.

Which Dimensions Matter Most for Furniture Handles

For recessed aluminum pulls and slim architectural handles like the ones we produce, certain dimensions are critical because they determine whether the handle fits the routed channel or drilled holes in the cabinet door. Others are important but less sensitive.

How to Record Tolerances Properly

Write tolerances directly on a 2D drawing or a dimensioned photo. Include the unit of measurement, the measurement tool to be used, and the sample size for dimensional checks. For example: "Measure hole spacing on 20 randomly selected handles per carton using a digital caliper ⁴ accurate to 0.01 mm." This removes ambiguity. Both the factory QC team and any third-party inspector can follow the same instruction.

Fit Testing Against Real Furniture

Numbers on paper are essential, but a functional fit test adds another layer of confidence. Ask the supplier to mount a sample of handles from the production run onto an actual panel or a jig that replicates the cabinet door thickness and hole pattern. If the handle wobbles, sits unevenly, or requires force to align, the tolerances on paper may be correct but the combined stack-up of small deviations still causes a problem. This five-minute test catches issues that calipers alone miss.

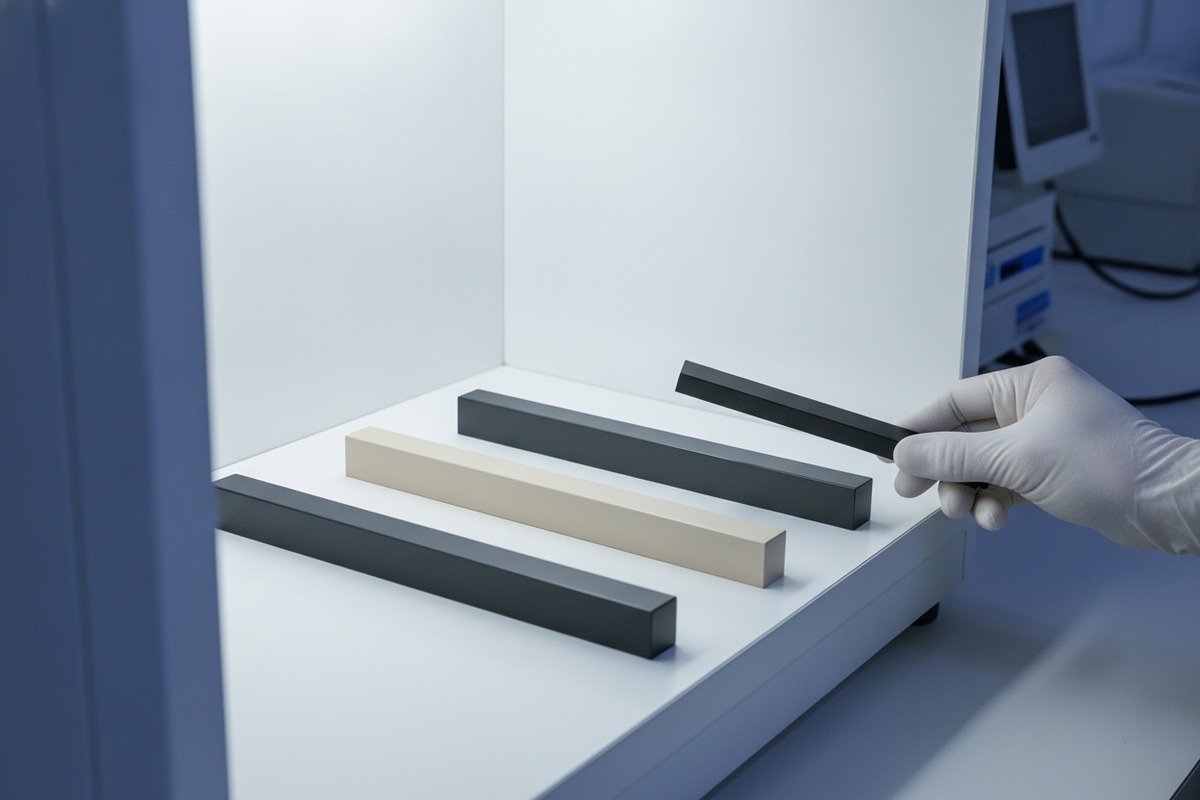

What visual inspection criteria should I use to maintain color and finish consistency across different batches?

On our anodizing line, we process champagne gold, matte black, charcoal grey, and a dozen other finishes daily. Even small process shifts—bath temperature, dwell time, rinse quality—can push color outside the acceptable window.

Maintain color and finish consistency by establishing a golden sample set with upper and lower color limits, specifying lighting conditions for visual comparison, defining pass/fail rules for surface defects like scratches and pits, and using a standardized viewing distance of 30–50 cm at a 45-degree angle.

The Golden Sample Set Explained

A single golden sample shows the target. But production will always have slight variation. A more practical approach is to create a limit sample set: one piece at the target color, one at the lightest acceptable limit, and one at the darkest acceptable limit. These three pieces together define the window. Any handle that falls within this window passes; anything outside fails. Both you and the factory should keep identical sets, stored in sealed bags away from UV light so the reference does not degrade over time.

Defining Surface Defect Rules

"Good finish" means different things to different people. Instead, list every possible surface defect and assign it a severity level. Here is a practical defect classification table for aluminum furniture handles:

Standardizing the Viewing Conditions

Color comparison must happen under consistent lighting. A handle inspected under warm workshop fluorescent light will look different from the same handle under cool daylight. Specify the light source—D65 daylight equivalent ⁵ is the industry norm—and the viewing angle. For most furniture hardware, a 45-degree angle at 30 to 50 cm viewing distance simulates how a customer sees the handle on a cabinet. Write this into your inspection checklist so every inspector, whether at the factory or at a third-party lab, evaluates the same way.

Batch-to-Batch Tracking

Even with a limit sample set, color can drift slowly across multiple production batches. Keep a retention sample from each shipment. Label it with the batch date, order number, and production line. If a color complaint arises six months later, you can compare the current batch against the historical chain of retention samples to pinpoint when the drift started. This practice costs almost nothing but saves enormous time in dispute resolution.

Finish Types and Their Inspection Challenges

Different finishes present different risks. Anodized finishes are relatively stable but sensitive to bath chemistry. Powder-coated finishes can show orange peel texture or poor adhesion. Brushed finishes may show inconsistent grain direction. For each finish type, add one or two specific checks:

• Anodized: cross-hatch adhesion test, coating thickness measurement with an eddy-current gauge.
• Powder-coated: impact resistance spot-check, gloss meter reading.
• Brushed: grain direction consistency, no cross-scratches.

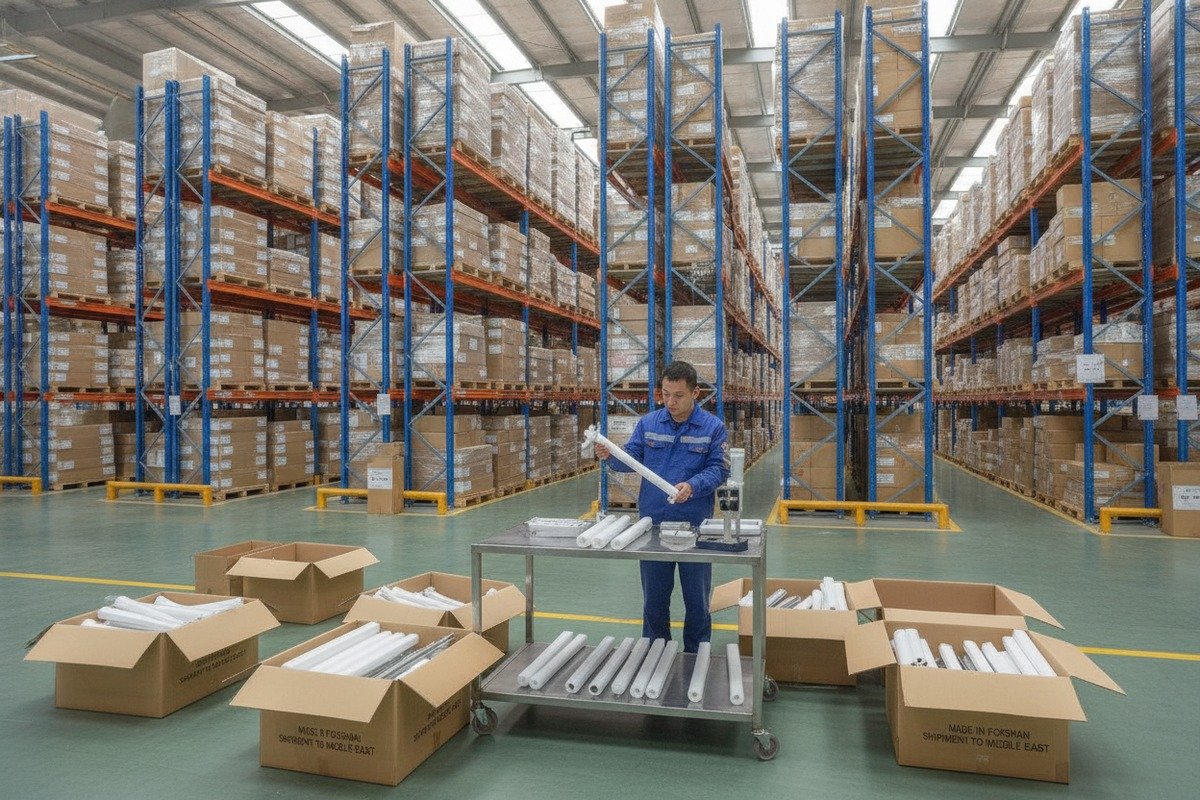

How do I verify that the material composition of my mass-produced handles matches the initial sample?

We stock over 300 tons of aluminum profiles in our Foshan warehouse, and every incoming coil comes with a mill certificate ⁶. Still, buyers occasionally ask us: "How do I know the bulk order uses the same alloy as the sample?" It is a valid question, especially when price pressure tempts some suppliers to substitute cheaper grades.

Verify material composition by requesting the aluminum alloy mill certificate for each production batch, conducting spot-check weight comparisons against the sample, and—when stakes are high—commissioning XRF spectrometer testing to confirm the exact alloy grade matches the approved specification.

What a Mill Certificate Tells You

A mill certificate, also called a material test report, is issued by the aluminum smelter or extruder. It lists the alloy designation (e.g., 6063-T5 ⁷), chemical composition percentages, mechanical properties, and heat treatment condition. Ask your supplier to provide a copy for every batch of raw material used in your order. The certificate should trace back to the coil or billet lot number.

Weight Consistency as a Quick Proxy

Weighing is the simplest material check. If the approved sample handle weighs 85 grams and mass-produced units consistently weigh 72 grams, either the wall thickness has been reduced or the alloy density is different. Weigh 10 to 20 random units per batch on a precision scale accurate to 0.1 gram and compare the average against the sample weight. Allow a small tolerance—typically ± 3% for extruded aluminum parts—but investigate anything beyond that range.

When to Use XRF or Lab Testing

A handheld XRF (X-ray fluorescence) spectrometer can identify the alloy composition in seconds without damaging the part. XRF spectrometer ⁸ This is useful when you suspect material substitution or when the product specification requires a specific grade for corrosion resistance or structural strength. Third-party inspection companies in China offer on-site XRF testing as an add-on service. For high-value or safety-critical orders, the cost of one XRF session is negligible compared to the risk of receiving the wrong material.

Common Alloy Substitution Risks

Understanding these substitution patterns helps you ask the right questions. If your handle requires a high-quality anodized champagne gold finish, the alloy purity directly affects the final appearance. A cheaper recycled alloy may anodize unevenly or develop a grey tint, even if the dimensions are correct.

Combining Documentation and Physical Checks

No single method is foolproof. Mill certificates can be falsified. Weight checks can miss subtle alloy changes. XRF is accurate but expensive to run on every batch. The practical approach is to layer these methods: require the mill certificate as a baseline, conduct weight checks on every shipment, and schedule XRF verification for the first bulk order and then periodically—perhaps every fifth order or whenever you notice finish anomalies.

What steps should I take to implement a reliable pre-shipment inspection process with my Chinese supplier?

Over 18 years of exporting aluminum hardware, we have seen how a well-structured pre-shipment inspection ⁹ protects both sides. It gives the buyer confidence to release payment and gives us a clear record that the goods met the agreed standard before leaving our warehouse.

Implement a reliable pre-shipment inspection by agreeing on AQL-based random sampling levels, providing inspectors with the golden sample and defect catalog, scheduling the inspection after at least 80% of goods are packed, and requiring a written pass/fail report with photos before releasing the final payment.

Understanding AQL-Based Sampling

AQL stands for Acceptance Quality Limit ¹⁰. It is the statistical framework used worldwide to decide whether a production lot passes or fails based on a random sample. You do not inspect every handle—that would be impractical for an order of thousands. Instead, you pull a defined number of random units and count the defects found.

Here is how a typical AQL plan works for aluminum furniture handles:

If you order 5,000 handles, the inspector randomly selects 200 units. If the inspector finds zero critical defects, no more than 10 major defects, and no more than 14 minor defects, the lot passes. If any threshold is exceeded, the lot fails and the factory must sort, rework, or replace.

Multi-Stage Inspection Is Better Than Final-Only

Relying solely on a pre-shipment inspection is risky. By the time all goods are packed, reworking defective units is expensive and delays the shipment. A stage-gated approach catches problems earlier:

• Pre-production inspection (PPI): Confirm raw materials, tooling, and finish samples before mass production begins.
• During-production inspection (DPI): Visit when about 20–30% of the order is complete. Check dimensions, finish, and defect rates early so the factory can correct any drift.
• Pre-shipment inspection (PSI): Conduct the full AQL-based inspection after 80% or more of goods are packed and ready.
• Container loading supervision (CLS): Verify the correct quantity is loaded, cartons are stacked properly, and no damage occurs during loading.

Not every order requires all four stages. For a first order with a new supplier, we recommend at least PPI and PSI. For repeat orders with a trusted supplier, PSI alone may suffice.

What to Include in the Inspection Checklist

Your checklist is the single document that guides every inspection. It should cover:

1. Order reference number and product description.
2. Golden sample reference and location.
3. Dimensional checks with tools specified.
4. Surface finish and color comparison instructions.
5. Defect classification table with photos.
6. AQL plan and sample size.
7. Packaging and labeling requirements.
8. Functional fit test instructions.
9. Pass/fail decision rules.
10. Corrective action procedure if the lot fails.

Handling Disputes When Production Differs from the Sample

Disputes happen. The factory may argue that a slight color shift is "within normal range for anodizing." The buyer may insist it does not match the golden sample. The resolution mechanism should be agreed before production starts:

• Both parties keep identical golden samples and limit samples.
• The defect catalog with photos defines what is acceptable and what is not.
• If disagreement persists, a neutral third-party inspection company can re-inspect against the documented standards.
• The purchase contract should state who bears the cost of rework, replacement, or return if the lot fails inspection.

Having all of this in writing before the first order eliminates most arguments. The standard becomes the contract, not the memory of a conversation.

Packaging Standards Protect the Finish

Aluminum handles with premium finishes can be scratched or dented during transit if packaging is inadequate. Specify inner packaging—individual poly bags, foam dividers, or EPE sleeves—and outer carton requirements including material grade, stacking limits, and drop-test expectations. The pre-shipment inspector should verify that actual packaging matches the approved packaging sample, because a beautiful handle that arrives scratched is a failed delivery.

Conclusion

Turning a perfect sample into a reliable mass-production standard requires written tolerances, visual benchmarks, material verification, and structured AQL-based inspections—not just trust. Build these systems once, and every future order becomes predictable.
