Over the past 18 years, our production floor in Foshan has processed thousands of handle orders — and the ones that go wrong almost always share the same root cause: incomplete documentation from the buyer side before quoting even begins.
To source aluminum furniture handles from China accurately, you need two documentation sets: procurement information covering product style, dimensions, quantity, finish, price target, and delivery terms, plus technical documents including dimensioned CAD drawings, material specifications, surface finish standards, quality inspection criteria, and packaging requirements. Missing any of these causes costly errors.
This guide walks you through every document you should prepare before contacting a single supplier dimensioned 2D CAD drawings 1. Whether you are a building material wholesaler in the Middle East or a furniture factory buyer in Vietnam, having a complete sourcing packet saves you time, money, and headaches. Let me break it down section by section.

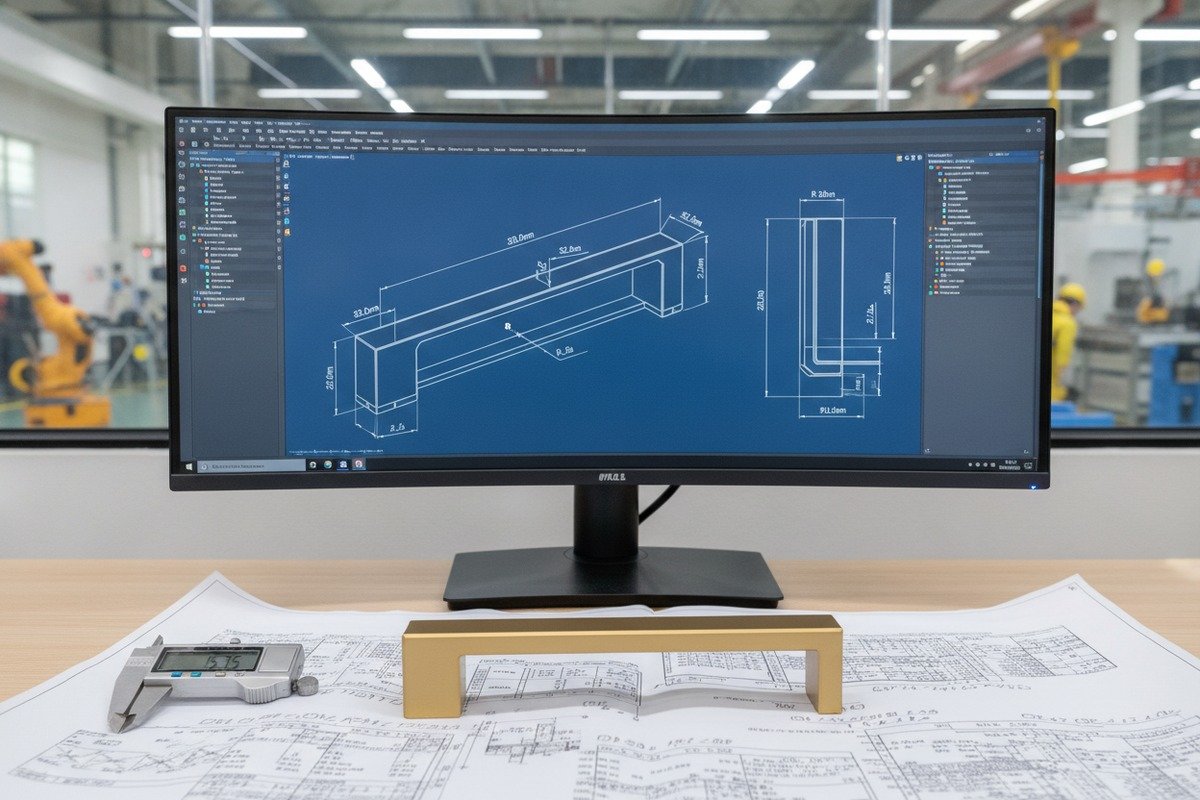

What Specific CAD Drawings and Technical Specifications Must I Provide to Ensure My Custom Handle Designs Are Manufactured Accurately?
When we receive an inquiry that includes only a product photo and a sentence like "make this in gold," our engineering team already knows there will be at least three rounds of back-and-forth before we can even quote ISO 9001 Certification 2. That delay costs you weeks.
You must provide dimensioned 2D CAD drawings showing overall length, width, height, mounting-hole spacing, screw diameter, edge radii, and profile cross-section. A 3D model file speeds up tooling. Without precise drawings, no factory can guarantee your custom handle will fit your furniture or match your design intent.
Why a Photo Is Never Enough
A photo tells us the style. It does not tell us the exact hole center distance, the depth of the finger-grip channel, or the wall thickness of the extrusion. For the recessed, minimalist handles we produce — those sleek rectangular pulls with a deep geometric channel — even a 0.5 mm difference in channel depth changes the feel in the hand. Our engineers need numbers, not just images.
The Minimum Drawing Package
Here is what your drawing should include at a bare minimum:
| Drawing Element | Why It Matters | Common Mistake |
|---|---|---|
| Overall length (mm) | Determines mold or die size | Buyer states "about 200 mm" instead of exact figure |
| Mounting-hole spacing (center to center) | Must match existing furniture drill patterns | Buyer forgets to measure from center to center |
| Screw hole diameter and thread | Ensures included screws fit | Buyer assumes M4 without checking |
| Profile cross-section | Defines the extrusion die shape | Buyer sends only a front view, no side section |
| Edge radii and chamfers | Affects safety and feel | Buyer leaves edges undefined, factory chooses |
| Tolerances | Prevents rejection at QC | Buyer provides no tolerance, expects perfection |
2D vs. 3D Files
A 2D PDF or DWG drawing is the minimum. If you can supply a 3D STEP or IGES file, our tooling department can run virtual fit checks and start die design faster. For a handle like our champagne gold anodized extruded profile, the 3D model lets us simulate the extrusion process before cutting steel, which reduces tooling errors.
Installation Context Matters
Your drawing package should also note the intended furniture application. Are these handles for a 16 mm thick kitchen cabinet door? A 25 mm thick wardrobe panel? The panel thickness determines screw length and may affect the handle's base clearance. We have seen buyers receive a perfect handle that cannot be mounted because the screws are 5 mm too short for their panels.
Tolerance Guidance
If you do not specify tolerances, the factory will use its own defaults, which may not match your expectations. For aluminum furniture handles, a general tolerance of plus or minus 0.2 mm on linear dimensions is standard. For mounting-hole spacing, tighter tolerance of plus or minus 0.1 mm is wise because the handle must align with pre-drilled holes in production furniture.
Which Material Certifications and Quality Inspection Reports Should I Request to Verify the Grade of the Aluminum Used in My Order?
On our production line, we process primarily 6063-T5 aluminum alloy 3 for extruded furniture handles. But not every supplier uses the same grade, and some may substitute cheaper alloys without telling you. The difference shows up in hardness, corrosion resistance, and anodizing quality.
Request the aluminum mill test certificate showing alloy grade, temper, and chemical composition. Also ask for a material safety data sheet, a hardness test report, and a salt spray test result if corrosion resistance matters. These documents prove the aluminum meets your specification and protect you in quality disputes.
Understanding Aluminum Grades for Handles
Not all aluminum is the same. For furniture handles, the most common grades are:
| Alloy Grade | Typical Use | Key Property | Anodizing Quality |
|---|---|---|---|
| 6063-T5 | Extruded handles, profiles | Good surface finish, medium strength | Excellent — smooth, uniform color |
| 6061-T6 | Machined or structural handles | Higher strength, harder | Good but slightly grainier |
| ADC12 (die-cast) | Cast handles with complex shapes | Fills mold well, lower cost | Poor — not recommended for anodizing |
| 5052 | Stamped or bent handles | Good corrosion resistance | Fair |
When we produce our sleek recessed pulls, we use 6063-T5 because it extrudes cleanly and anodizes to a consistent champagne gold or matte black. If a supplier uses ADC12 die-cast aluminum instead and tries to anodize it, you will get a blotchy, uneven finish.
Which Certifications to Request
Ask your supplier for these documents before production:
- Mill Test Certificate (MTC): This comes from the aluminum billet or ingot supplier. It lists the exact chemical composition, alloy designation, and mechanical properties. If your handle supplier cannot provide this, they may not control their raw material source.
- RoHS or REACH Compliance Certificate: If you sell into the EU or markets with chemical restrictions, you need proof that the aluminum and any coatings are free from restricted substances like lead, cadmium, and hexavalent chromium. RoHS or REACH Compliance Certificate 4
- ISO 9001 Certification: This confirms the factory operates a quality management system. It does not guarantee product quality directly, but it means there are documented processes for inspection and traceability.
In-Process and Pre-Shipment Inspection
Beyond material certificates, you should define an inspection plan. At our facility, we run checks at three stages: incoming raw material, mid-production after extrusion or machining, and final pre-shipment. You can request inspection reports at each stage or hire a third-party inspector.
A pre-shipment inspection report should cover dimensional checks against your drawing, surface defect inspection, coating adhesion test results, and packaging condition. The key point is to agree on the inspection criteria before production starts, not after problems appear.
Hardness and Salt Spray Testing
For aluminum handles that will be used in kitchens or bathrooms, ask for a salt spray test 5 report. A 48-hour salt spray test is a minimum for anodized handles. Powder-coated handles should pass at least 500 hours. Hardness testing using a Webster or Brinell scale confirms the temper meets spec. If the supplier claims T5 temper but the hardness test shows soft material, the extrusion was not aged properly.
How Do I Document My Surface Finish and Color-Matching Requirements to Achieve a Consistent Look Across My Entire Furniture Line?
Color inconsistency is one of the top three complaints we hear from new buyers who previously worked with other suppliers. They order charcoal grey handles for a kitchen line, and the first batch looks perfect, but the second batch is slightly greenish. The reason is almost always the same: the buyer approved a finish verbally but never locked down a written standard.
Document your surface finish by specifying the finish type (anodized, powder-coated, brushed, polished), the color standard (RAL number, Pantone code, or approved physical sample), acceptable gloss range, and a Delta E color tolerance. Send a golden sample to the factory as the permanent reference for all future batches.
Finish Types for Aluminum Handles
Our recessed handles come in matte white, charcoal grey, black, champagne gold, and light beige. Each of these finishes uses a different process, and the process determines how you should document the requirement.
| Finish Type | Process | How to Specify Color | Typical Gloss Range (GU at 60°) |
|---|---|---|---|
| Anodized | Electrolytic oxidation with dye | Approved physical sample + Delta E ≤ 1.5 | 10–30 (matte to satin) |
| Powder coated | Electrostatic spray + oven cure | RAL number or Pantone + Delta E ≤ 2.0 | 20–90 (matte to gloss) |
| Brushed + clear anodized | Mechanical brushing + anodize | Brush direction, grit size, sample | 15–25 |
| Polished | Mechanical buffing | Mirror grade or sample | 80+ |
| Painted (liquid) | Spray paint + bake | RAL or Pantone + sample | Varies |
The Golden Sample System
A golden sample 7 is the single physical handle that both you and the factory agree is the correct appearance, color, feel, and finish. Once approved, the factory keeps one and you keep one. Every future production batch is compared against this golden sample. Without it, each batch is judged subjectively, and subjective judgment leads to disputes.
When we produce champagne gold anodized handles, the anodizing bath concentration changes slightly over time. Our quality team uses the golden sample and a colorimeter to check every production run. If the Delta E reading exceeds the agreed limit, we adjust before shipping.
How to Define Delta E Tolerance
Delta E is a number that measures the difference between two colors. A Delta E of 0 means a perfect match. Here is a practical guide:
- Delta E ≤ 1.0: Almost invisible difference. Very difficult and expensive to hold consistently.
- Delta E ≤ 1.5: Slight difference visible to a trained eye. Good standard for anodized handles.
- Delta E ≤ 2.0: Noticeable to a careful observer, but acceptable for most powder-coated handles.
- Delta E > 3.0: Clearly different. Not acceptable for handles used on the same piece of furniture.
Gloss and Texture
Color is not the only variable. Gloss level matters too. A matte charcoal handle next to a satin charcoal handle looks like a different color, even if the pigment is identical. Specify gloss in gloss units (GU) measured at 60 degrees, and give a range such as 15–25 GU for matte finishes.
For brushed finishes, specify the brush direction (lengthwise or crosswise), the grit size (such as 320 grit), and the brush pattern density. These details sound minor, but they are immediately visible when handles are installed side by side on a row of cabinets.
Batch Consistency Across Orders
If you order handles in multiple batches over several months, batch-to-batch consistency becomes your biggest challenge. The best protection is the golden sample plus written tolerances. We recommend ordering slightly more than you need for each project phase so you can pull from the same production batch for all handles in a single room or cabinet run.
What Logistics Information and Packaging Standards Should I Include in My Procurement Plan to Streamline Shipping From China to My Warehouse?
We ship from Foshan to warehouses in Vietnam and the Middle East almost every week. The orders that clear customs fastest and arrive in the best condition are always the ones where the buyer specified packaging and shipping details upfront — not as an afterthought after production was already finished.
Include in your procurement plan the Incoterm (FOB, CIF, or DDP), destination port and warehouse address, required shipping documents (commercial invoice, packing list, bill of lading, certificate of origin), inner and outer packaging specifications, carton labeling requirements, pallet standards, and the correct HS code for aluminum handles to ensure accurate duty calculation.
Defining Your Incoterm Early
The Incoterm 9 determines who pays for freight, insurance, and customs clearance. For most of our buyers, the three most common choices are:
- FOB Foshan/Nanhai: You arrange ocean freight from the Chinese port. We handle export customs. This gives you control over shipping cost.
- CIF Destination Port: We arrange freight and insurance to your port. You handle import clearance and local delivery.
- DDP Your Warehouse: We handle everything door to door. You pay one price and receive goods at your location.
Choose your Incoterm before requesting quotes. It affects the final price comparison between suppliers.
Essential Shipping Documents
Your procurement plan should list every document you need for customs clearance at your destination. Here is a standard checklist:
| Document | Purpose | Who Provides It |
|---|---|---|
| Commercial Invoice | States value, quantity, description for customs | Supplier |
| Packing List | Details carton count, weights, dimensions | Supplier |
| Bill of Lading (B/L) | Proof of shipment, title of goods | Shipping line via supplier or forwarder |
| Certificate of Origin (COO) | Confirms goods are made in China; may qualify for tariff preference | Supplier applies through chamber of commerce |
| HS Code 10 Declaration | Correct tariff classification for aluminum handles | Buyer and supplier agree on code |
| Fumigation Certificate | Required if using wooden pallets | Supplier or pallet provider |
HS Code for Aluminum Handles
Getting the HS code wrong delays customs clearance and may result in overpaid duties. Aluminum furniture handles typically fall under HS code 8302.42 (base metal mountings, fittings, and similar articles suitable for furniture). Confirm the exact subheading with your customs broker because classification varies by country.

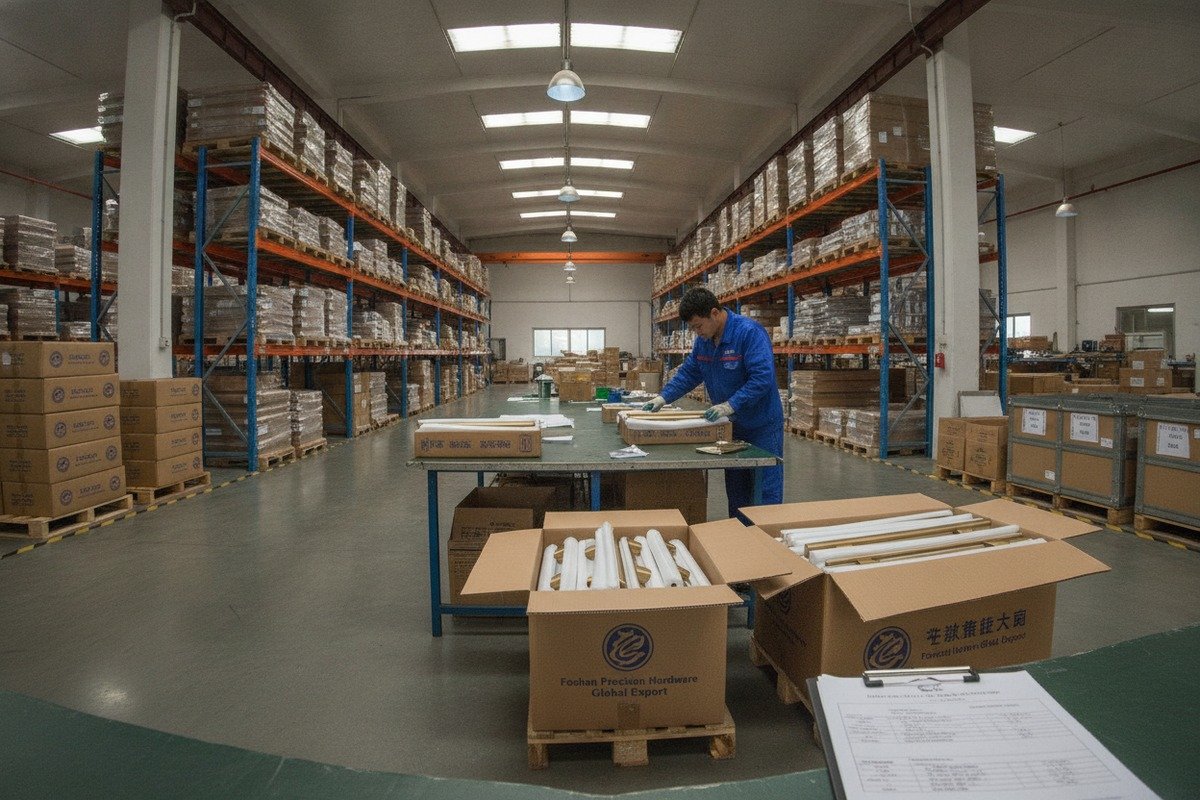

Packaging Standards
Packaging protects the handle finish during transit. For our matte anodized and powder-coated handles, we use individual poly bags to prevent surface scratching, then pack handles into inner boxes with foam dividers, and finally pack inner boxes into standard export cartons. The carton should withstand stacking pressure for ocean container transport.
Specify the following in your packaging requirement:
- Inner packaging: individual poly bag, foam sleeve, or paper wrap
- Inner box quantity: how many handles per inner box
- Outer carton material: single wall or double wall corrugated
- Outer carton dimensions and gross weight limit
- Pallet type: wooden with ISPM 15 heat treatment, or plastic
- Labeling: what information goes on each carton (item number, quantity, color, PO number, barcode if needed)
Screw Inclusion and Hardware Kits
Do not forget to specify whether screws are included with each handle. If you need M4 x 25 mm screws packed with each handle, state this in the procurement plan. Otherwise, you may receive handles without screws, and sourcing matching screws locally wastes time. We pack screws in small bags inside each handle box by default, but only if the buyer confirms screw length and type during the order process.
Weight and Volume Planning
For freight cost estimation, you need to know the gross weight per carton and the carton dimensions. A typical carton of 128 mm aluminum handles weighs about 12–15 kg gross depending on handle size and packaging density. Get this data from your supplier early so your freight forwarder can reserve space and quote accurately.
Conclusion
Preparing complete procurement information and technical documents before contacting suppliers is the single most effective way to get accurate quotes, reduce defects, and avoid costly delays when sourcing aluminum furniture handles from China. Start with precise drawings, lock down material and finish specifications with physical samples and measurable tolerances, define your quality inspection plan, and document every logistics detail from Incoterm to carton labeling. If you need help building your sourcing packet or want to discuss a specific handle project, reach out to us at Al**************@********************************************te.com — our team is ready to walk you through the process.
